11kV indoor Earthing Switch with 150mm Poles for Switchgear
| Place of Origin | WENZHOU |
|---|---|
| Markenname | QIUPU |
| Zertifizierung | IEC |
| Model Number | EK6-12/25kA/150mm |
| Packaging Details | CARTONS/WOODENS |
| Delivery Time | 7 Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 50000PCS/Month |
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Rate Voltage | 11kV | Frequency Voltage | 42kV |
|---|---|---|---|
| Space Current | 31.5-40kA/4S | Distance | 150mm-275mm |
| Short Circuit opnening Current | 80kA | Life | 2000 Times |
| Tem | 400-100 |
Produkt-Beschreibung

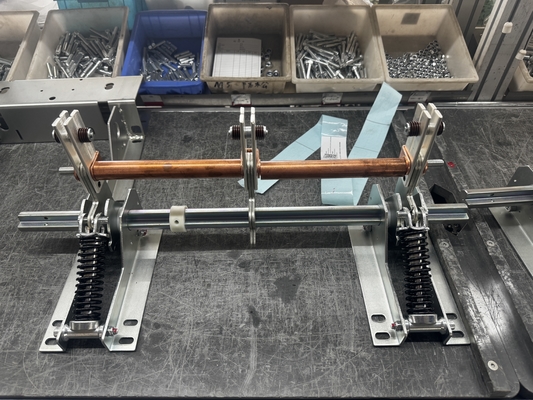

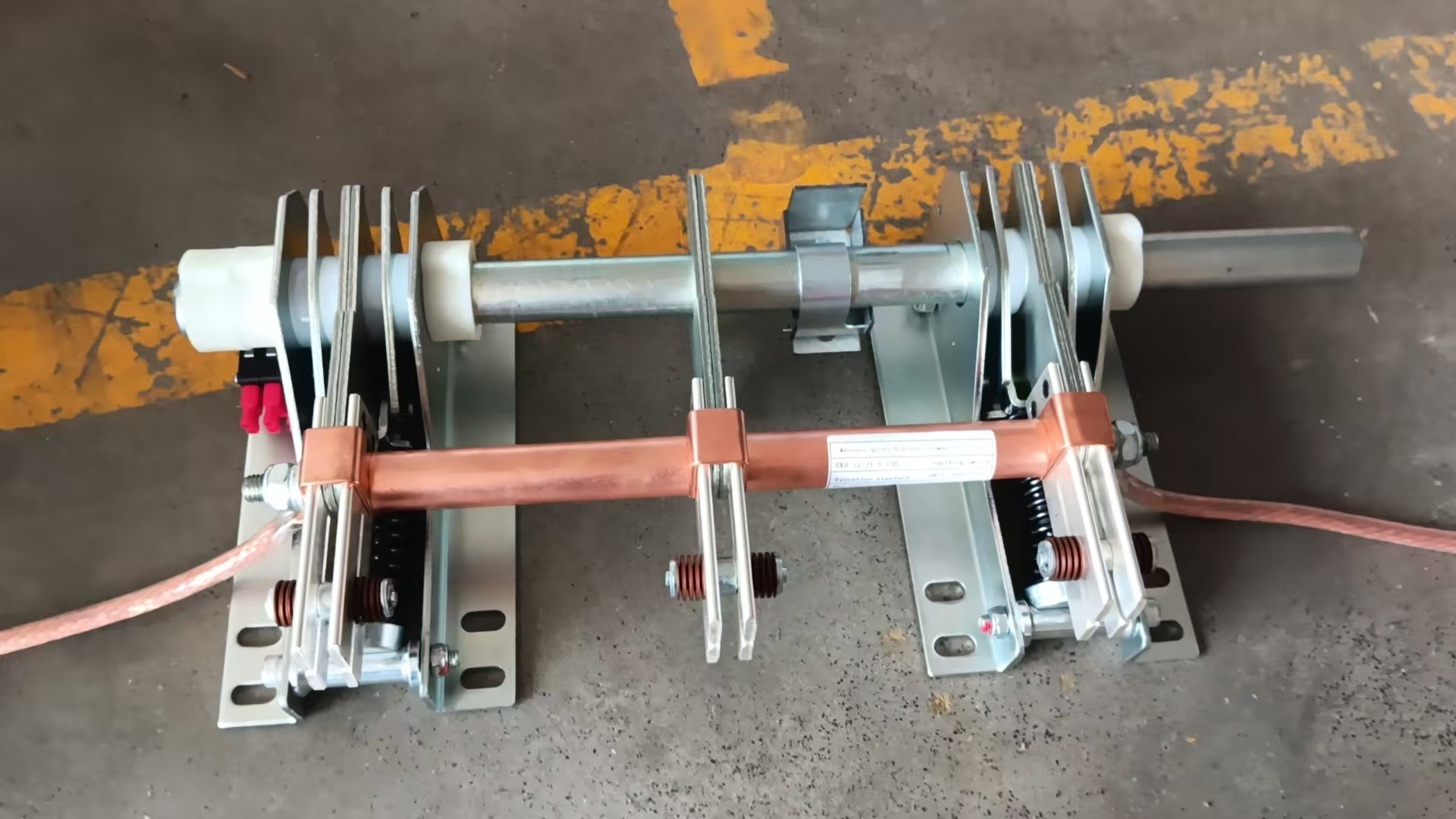

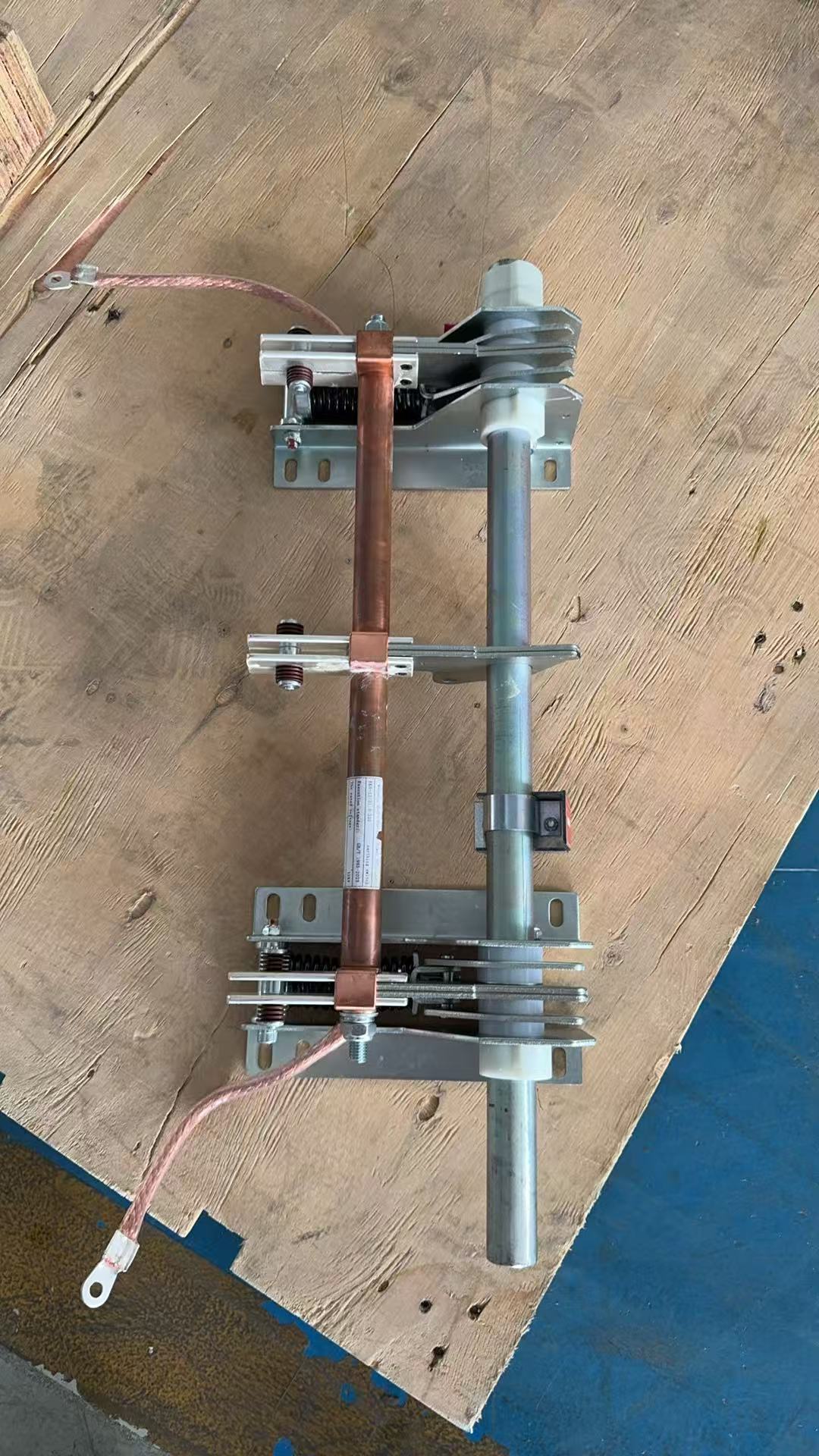

11kV indoor Earthing Switch with 150mm Poles for Switchgear
Features:
EK6-12/31.5 indoor AC high voltage earthing switch is an advanced level product with high-tech parameters performance. After comprehensive evaluation,it conforms to GB1985 and IEC62271 standard ,applies to power system of 3-12kV and three-phase AC 50Hz.It owns short-circuit making capacity to protect other electric equipment not being damaged.Can be used with various high voltage switchgear,also play a protective role in the high-voltage electrical equipment overhaul.
Earthing switch, a mechanical switch used in the grounding part of a circuit, belongs to the isolation switch category.
It can carry current under abnormal conditions(such as short circuit current) for a certain period of time, but it is not required to carry current under normal circuit conditions.
Note: Ground switches may have short circuit connection capacity.
Effect:
To ground high-voltage equipment and lines during maintenance in place of portable ground lines to protect personal safety .
| Item | Technical data | ||||||||||||
| Rated voltage (KV) | 12 | ||||||||||||
| Rated frequency(Hz) | 50 | ||||||||||||
| Insulator(capacity) | insulating | Frequency withstand voltage 5 min (KV) | 42 | ||||||||||
| Frequency withstand voltage 1 min (V) | 2000 | ||||||||||||
| Lighting impulse withstand voltage (KV) | 40 | 75 | |||||||||||
| sapce | 150mm-275mm | ||||||||||||
| Life | 1000 | ||||||||||||
