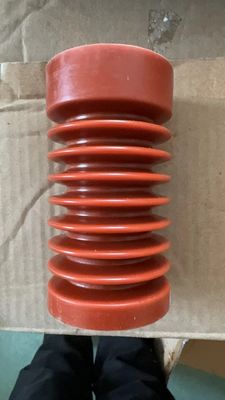

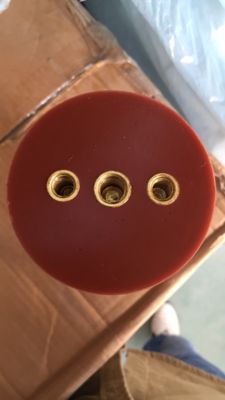

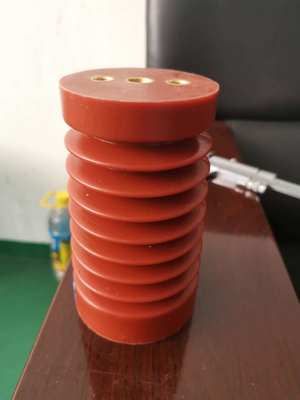

11kv Casting Resin Standoff Insulators for Fix Copper Busbar in Switch Cabinet
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Material | Harz gießen | Farbe | Rotbraun |
|---|---|---|---|

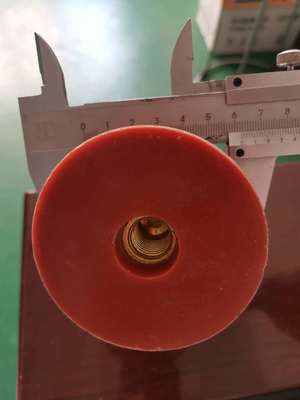

| Kriechstrecke | 280 mm | Dia | 65 mm |

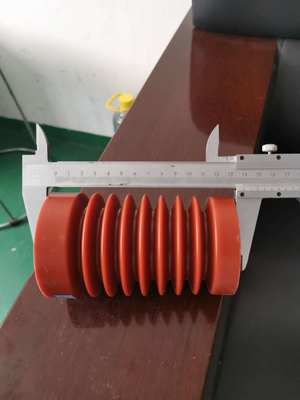

| Higth | 125 mm | Ratenspannung | 11KV |
Produkt-Beschreibung
11kv Casting Resin Standoff Insulators for Fix Copper Busbar in Switch Cabinet
1. We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
2. The load switch adopts the pressure gas internal blowing structure, the arc extinguishing ability is strong, and does not affect the interphase and ground insulation, both the dynamic and static contacts have the arc contact, greatly increased the number of breakdowns.
3. The fuse and the load switch room form the transformer protection circuit. The high voltage flow limiting fuse is installed in the insulated shell of epoxy pouring. After the fuse is broken, the firing pin is ejected and the load switch is divided.
| Item | Technical data | ||||||||||||
| Rated voltage (KV) | 3.6 | 12 | 24 | 40.5 | |||||||||
| Rated frequency(Hz) | 50 | ||||||||||||
| Insulator(capacity) | insulating | Frequency withstand voltage 5 min (KV) | 25 | 42 | 100 | ||||||||
| Frequency withstand voltage 1 min (V) | 2000 | ||||||||||||
| Lighting impulse withstand voltage (KV) | 40 | 75 | 185 | ||||||||||
| Local discharge (pc) | ≤10 | ||||||||||||
| Dispute bend (N) | ≥10000 | ||||||||||||
| Length | 140mm | ||||||||||||
